Sikadur-31 CF Normal

Product Category: Structural Epoxy Adhesive & Repair Mortar Brand: Sika Model Code: Sikadur®-31 CF Normal

Description

Sikadur®-31 CF Normal is a 2-component, moisture-tolerant epoxy adhesive and repair mortar, designed for structural bonding, crack repair, and concrete patching. It is thixotropic (non-sag) and suitable for vertical and overhead applications.

Applications

Structural Bonding

• Concrete elements

• Natural stone

• Ceramics and fiber cement

• Brick and masonry

• Steel, iron, aluminium

• Wood

• Glass and epoxy surfaces

Repair Applications

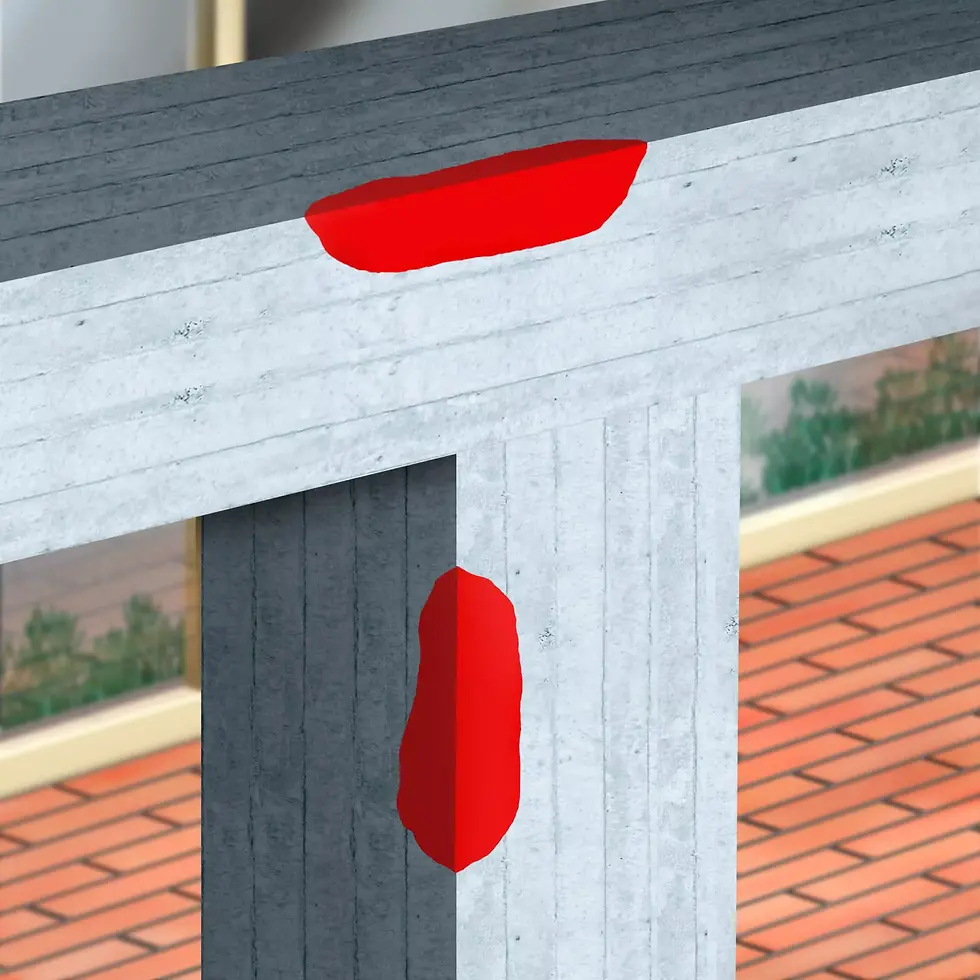

• Corners and edges repair

• Holes and void filling

• Vertical and overhead repairs

Joint & Crack Repair

• Crack filling

• Edge repair (arris repair)

Key Features

• High structural strength

• Excellent adhesion to most materials

• Non-sag (ideal for vertical & overhead)

• Moisture tolerant (can apply on damp substrate)

• Hardens without shrinkage

• No primer required

• High mechanical and abrasion resistance

• Impermeable to water and liquids

• Good chemical resistance

Standards & Certification

• EN 1504-4 → Structural bonding (CE marked)

Product Information

• Type: 2-component epoxy adhesive

• Composition: Epoxy resin + fillers

Packaging

• 1.2 kg set (A+B)

• 6 kg set (A+B)

Colour

• Part A: White

• Part B: Dark grey

• Mixed: Concrete grey

Shelf Life

• 24 months

Storage

• +5°C to +30°C

• Dry, sealed packaging

Density

• ~1.90 kg/L (mixed)

Technical Data

Strength Performance (at +23°C)

• Compressive Strength:

  • 1 day: ~50 N/mm²

  • 3 days: ~60 N/mm²

  • 7 days: ~65 N/mm²

• Tensile Strength:

  • 1 day: ~8 N/mm²

  • 3 days: ~20 N/mm²

  • 7 days: ~21–22 N/mm²

• Flexural Strength:

  • 7 days: ~35 N/mm²

• Adhesion Strength:

  • Concrete: >4 N/mm² (concrete failure)

  • Steel: up to ~15 N/mm²

Mixing Ratio

• Component A : B = 2 : 1 (by weight or volume)

Consumption

• ~1.9 kg/m² per 1 mm thickness

Layer Thickness

• Maximum: 30 mm per layer

• Vertical application: non-sag up to ~15 mm

Application Conditions

• Temperature: +10°C to +30°C

• Substrate: dry or damp (no standing water)

• ≥3°C above dew point

Working Time (Pot Life)

Application Method

Mixing

• Mix Part A (~30 sec)

• Add Part B

• Mix for ~3 minutes

• Remix in clean container

Application

• Apply using:

  • Spatula

  • Trowel

  • Notched trowel

Uses

• Thin adhesive → apply directly

• Repair mortar → use formwork if needed

• Vertical bonding → support elements for ~12 hours

Surface Preparation

• Surface must be:

  • Clean

  • Sound

  • Free from oil, grease, dust

• Concrete must be ≥28 days old

• Steel must be cleaned to Sa 2.5 standard

Important Notes

• Do NOT mix large quantities at once (reduce pot life)

• Divide mixed material in hot conditions

• Avoid air entrapment during mixing

• Protect from condensation

Performance Advantages

• Structural-grade bonding solution

• High strength and durability

• Multi-purpose (adhesive + repair)

• Suitable for difficult applications

• Long-lasting performance

Cleaning

• Use Sika® Colma Cleaner

• Hardened material → mechanical removal

Safety & Handling

• Follow SDS guidelines

• Use PPE

• Apply by trained professionals

Additional Notes

• Lab-tested values

• Site conditions may affect results

• Structural design must consider creep behavior

Summary

Sikadur®-31 CF Normal is a high-performance structural epoxy adhesive and repair mortar, offering exceptional bonding strength, durability, and versatility, making it ideal for concrete repair, structural bonding, and crack filling applications.
